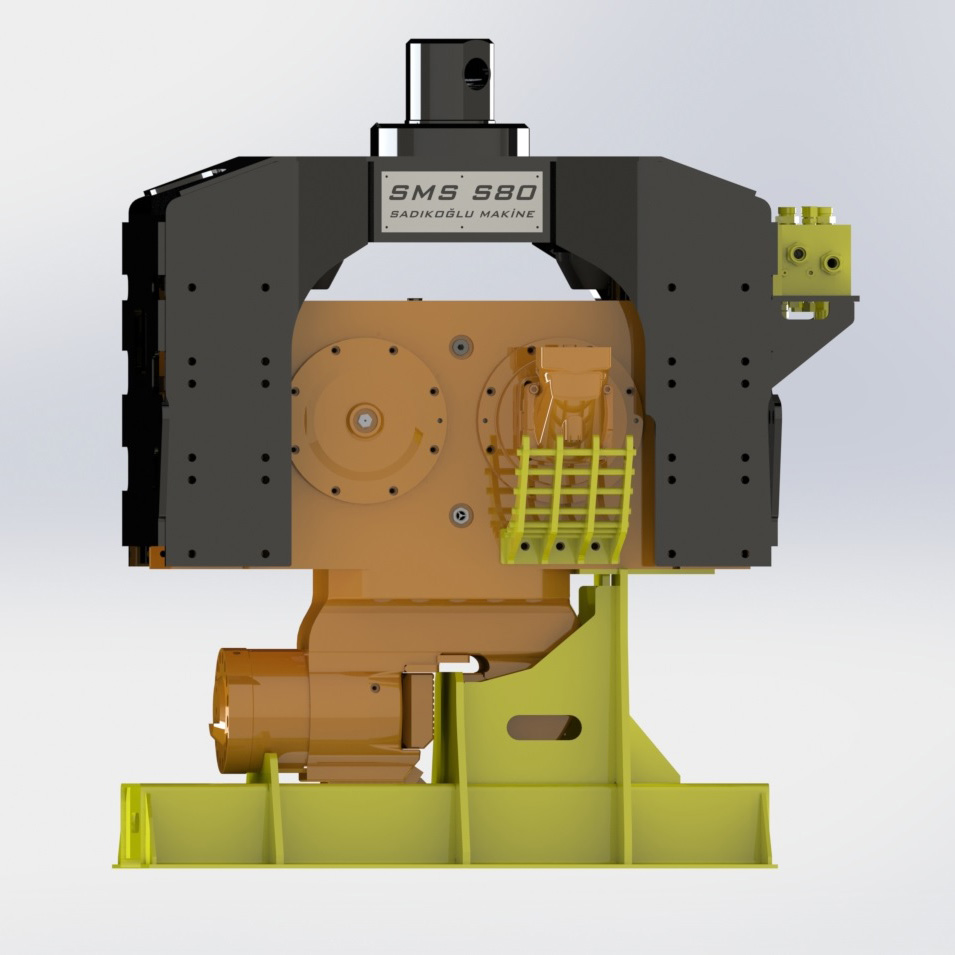

Vibratory Hammer - S80
It is a vibratory pile hammer designed in ideal dimensions for 34 - 42 ton class excavators. Easy assembly to the excavator, no adjustment required, direct operator guidance and no need for extra power provide ease of use.
It offers ideal solutions for up to 12 m sheet pile driving.
| Eccentric Moment (Kgm) | 7,2 |
| Centrifugal Force (kN) | 604 |
| Max. Amplitude (mm) | 14,5 |
| Speed (d/d) | 2500 |
| Max. Pulling Force (kN) | 175 |
| Max. Pushing Force (kN) | 90 |
| Dynamic Weight (kg) | 1780 |
| Weight (kg) | 2150 |
| Total Lenght (mm) | 1190 |
| Total Width (mm) | 1650 |
| Total Height (mm) | 800 |
| Flow (Lt/min) | 275 |
| Working Pressure (bar) | 300 |
| Power (kW) | 165 |
| Hydromotor | F12-110 |
| Oil Pump | - |
| Number of Cylinders | - |
| Rotation-Swing Angles(°) | - |
