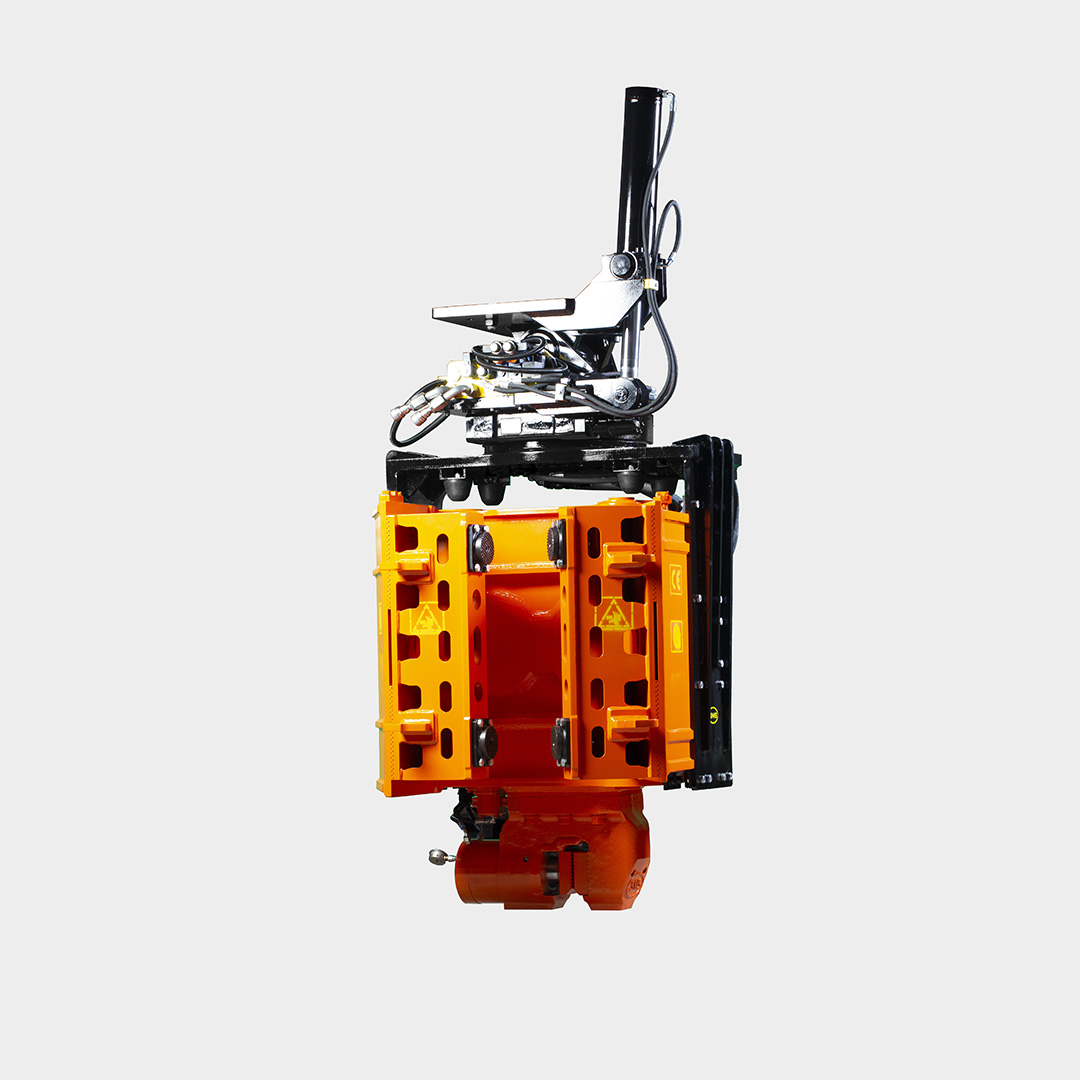

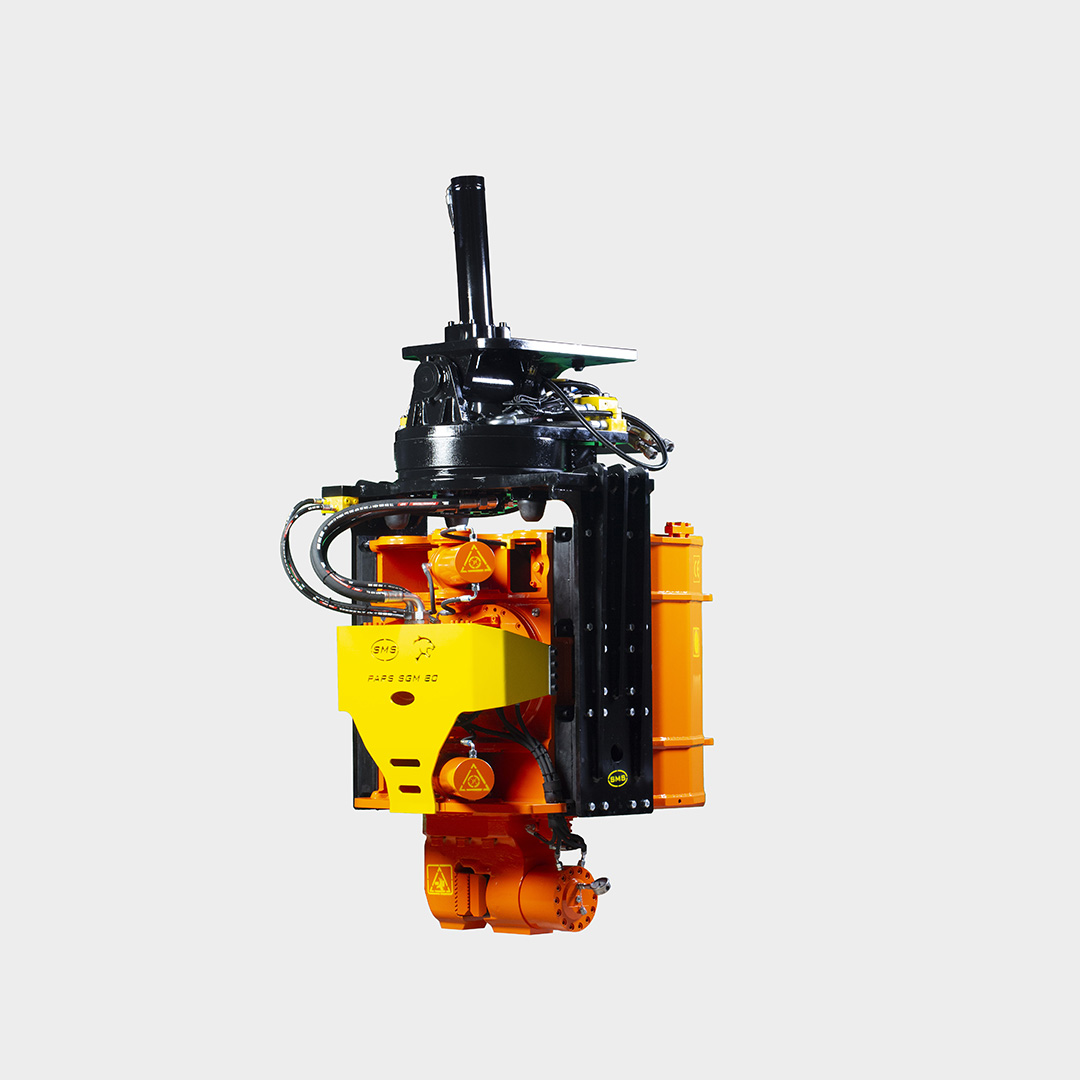

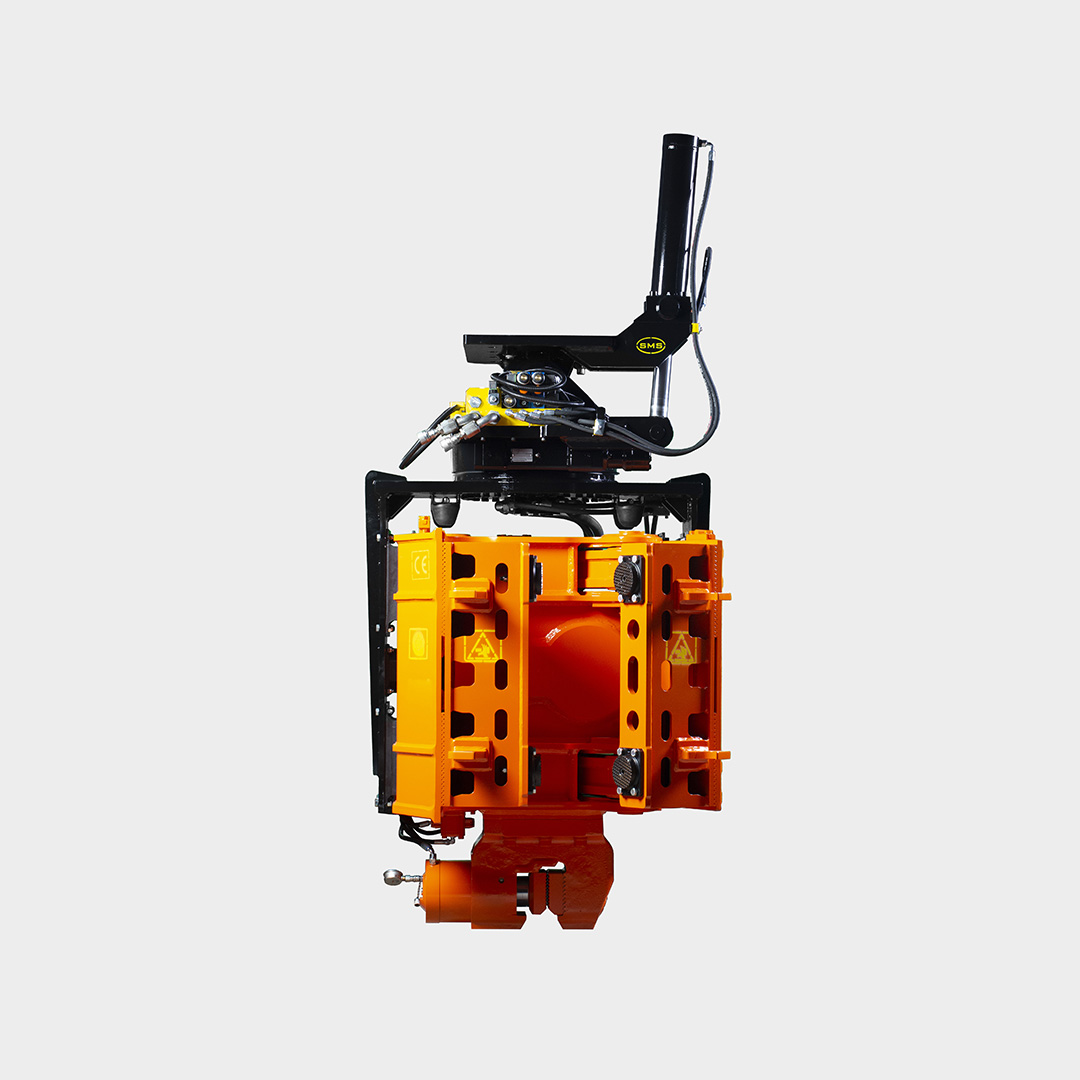

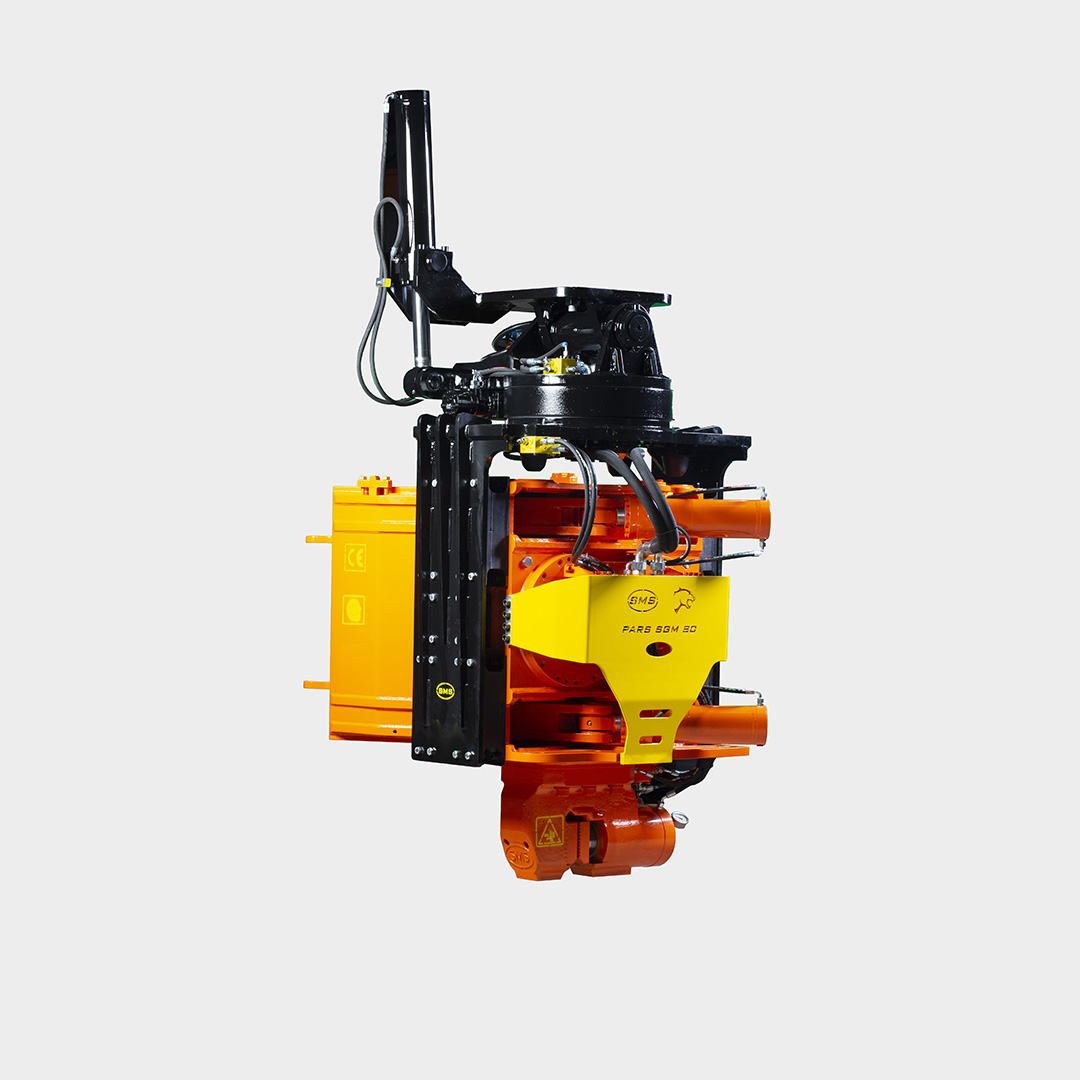

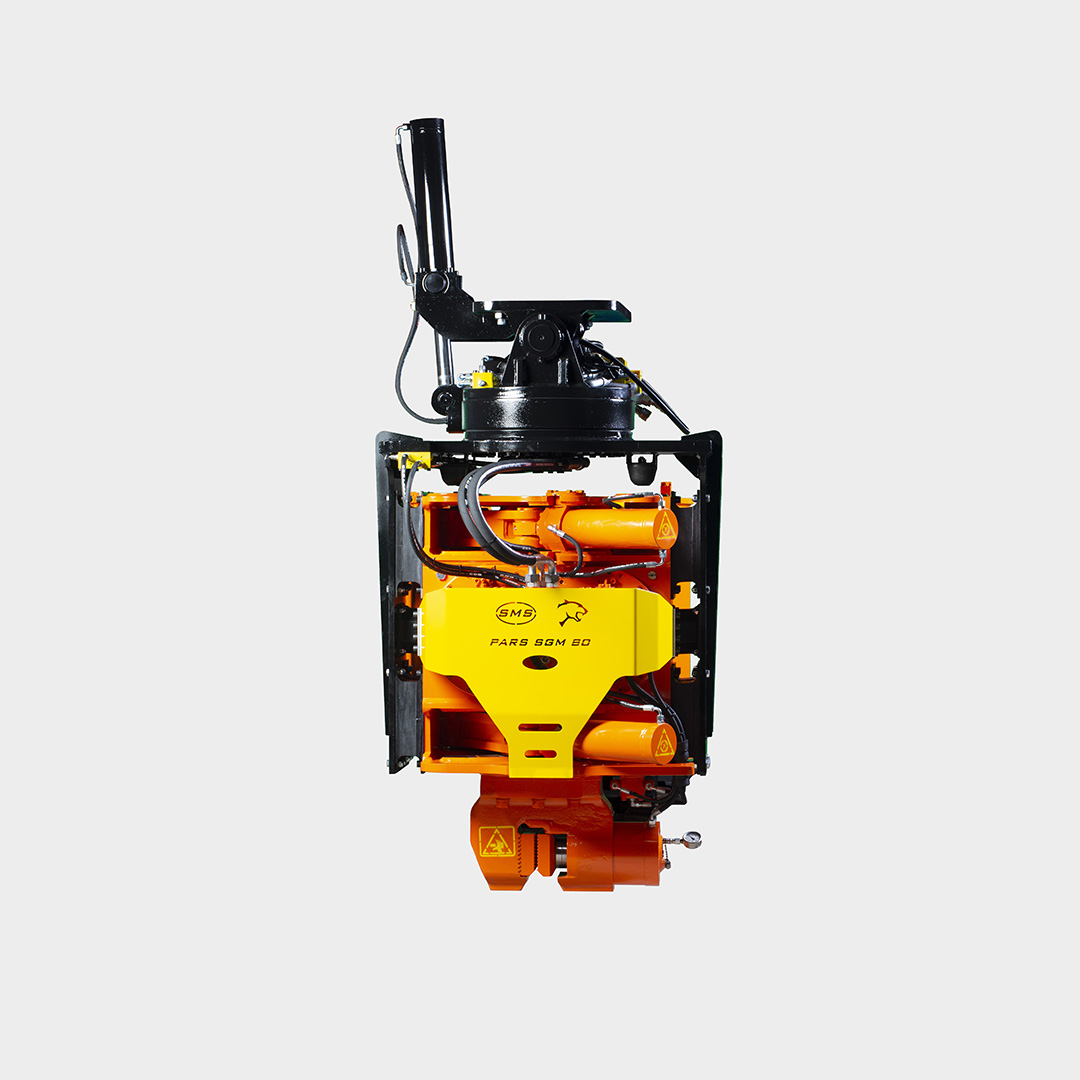

Side Grip Modular Vibratory Hammer - SGMK 80
It is an easily mounted vibratory driver with side grip designed for 34 - 42 ton excavators. SGMK series vibratory hammers are designed as modular, allows driving up to max 30° inclination or flat, materials such as pipes, sheet pile H type, etc. The PARS SGMK series side grıip vibratory hammer unit attaches to the end of the bucket arm of an excavator. The vibration unit can be rotated vertically and horizontally.
All parts of the PARS SGMK 80 - Side Grip Vibratory Hammer, which we produce, are in our stocks.
| Eccentric Moment (Kgm) | 8 |
| Centrifugal Force (kN) | 604 |
| Speed (d/d) | 2500 |
| Max. Pulling Force (kN) | 175 |
| Max. Pushing Force (kN) | 90 |
| Total Weight (kg) | 3500 |
| Total Lenght (mm) | 1350 |
| Total Width (mm) | 1422 |
| Total Height (mm) | 2560 |
| Flow (Lt/min) | 240 |
| Working Pressure (bar) | 300 |
| Power (kW) | 165 |
| Hydromotor | F12-40 x 2 peices |
| Oil Pump | + |
| Number of Cylinders | 3 |
| Rotation-Swing Angles(°) | 360-30 |
| Suitable Excavator Class | 32 Tons and Over |
| Transformable system | Suitable for Sheet piline and tubular piling |
| Sheet Piles | 400 mm- 1200 mm 12/ 16 meter lenght Max 2850 kg |
| H Beam | H180 - H500 12/ 16 meter lenght Max 2850 kg |
| Tubular Pile , Tubes | 90 mm to 762 mm 12/ 16 meter lenght Max 2850 kg |
