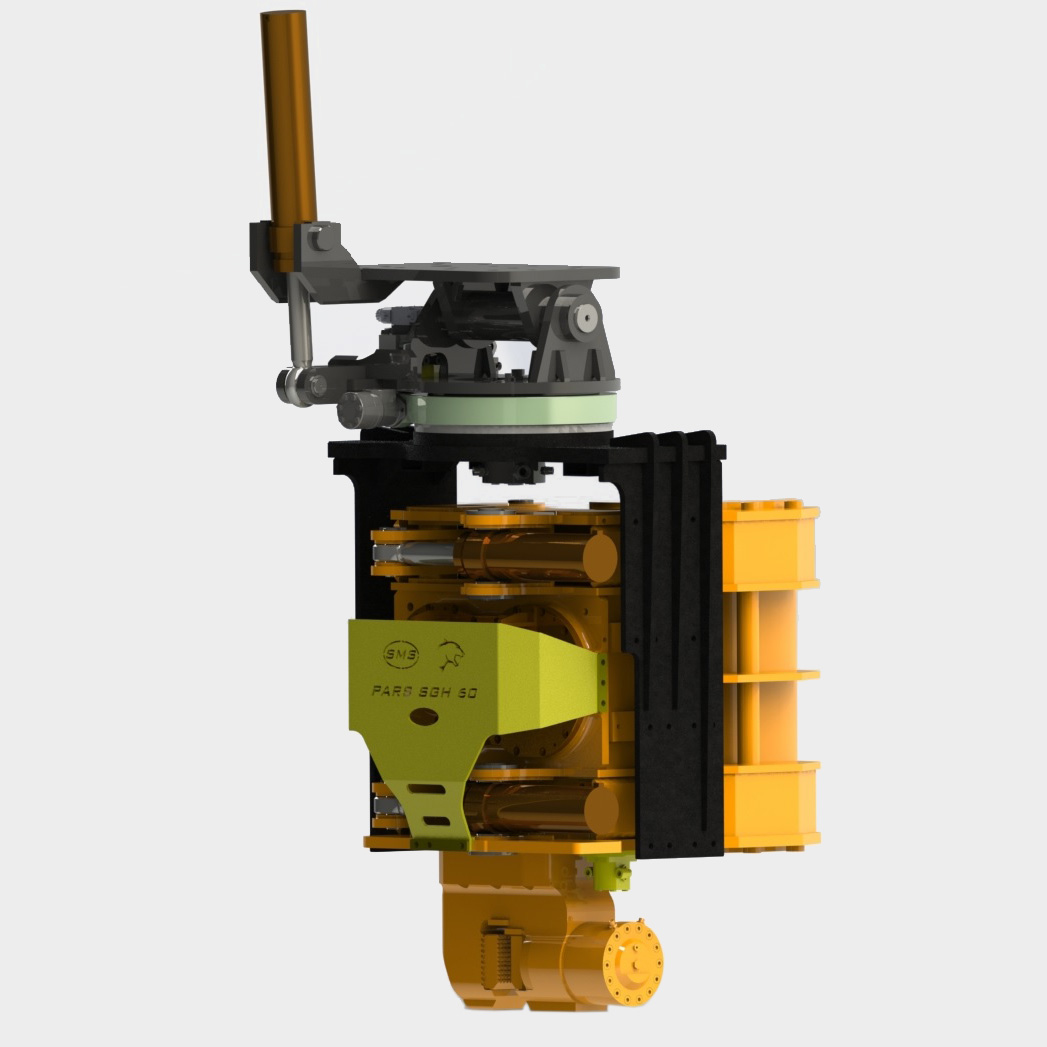

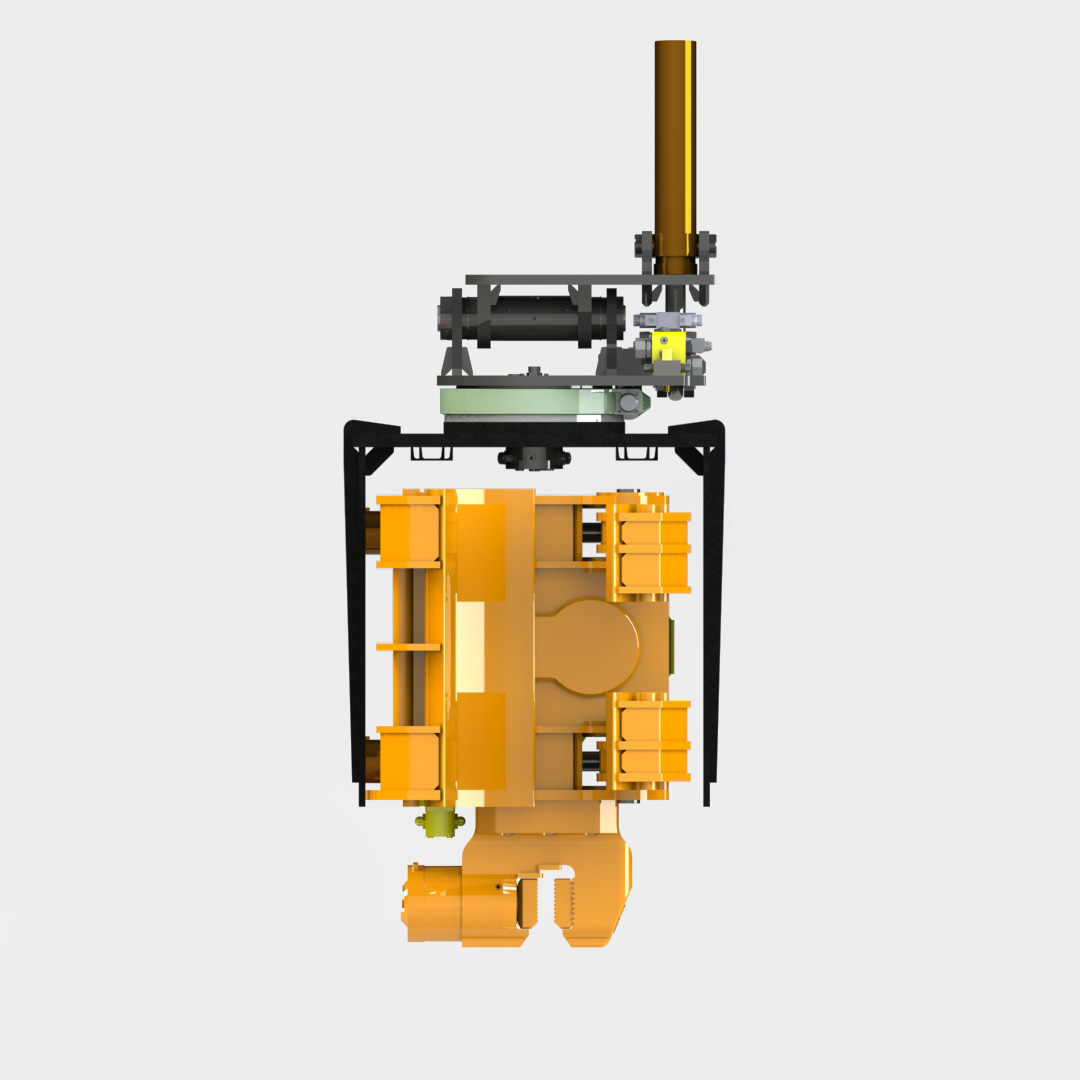

Side Grip Tubular Vibratory Hammer - SGH 60
It is an easily mounted vibratory driver with side grip designed for 28 - 32 ton excavators. SGH series vibratory hammers allow the removal of pipes and pipe type materials, and their hammering without the need for an operator by inclining. PARS SGH series vibratory hammer unit with side grip, 360° rotation around its axis, max. It can drive up to 30° degrees. Thanks to the electronic control system, the nail angles can be seen and smooth nailing can be done according to the ground.
All the parts of the PARS SGH 60 - Side Grip Vibratory Hammer that we produce are in our stocks.
| Eccentric Moment (Kgm) | 6 |
| Centrifugal Force (kN) | 450 |
| Speed (d/d) | 2500 |
| Max. Pulling Force (kN) | 120 |
| Max. Pushing Force (kN) | 80 |
| Total Weight (kg) | 2750 |
| Total Lenght (mm) | 1200 |
| Total Width (mm) | 1300 |
| Total Height (mm) | 2350 |
| Flow (Lt/min) | 204 |
| Working Pressure (bar) | 300 |
| Power (kW) | 120 |
| Hydromotor | F12-40 x 2 pieces |
| Oil Pump | + |
| Number of Cylinders | 3 |
| Rotation-Swing Angles(°) | 360-30 |
| Suitable Excavator Class | 28-32 Tons |
| Transformable System | - |
| Tubular Pile , Tubes | 80 mm to 500 mm 8/10/12 meter lenght Max 2300 kg |
