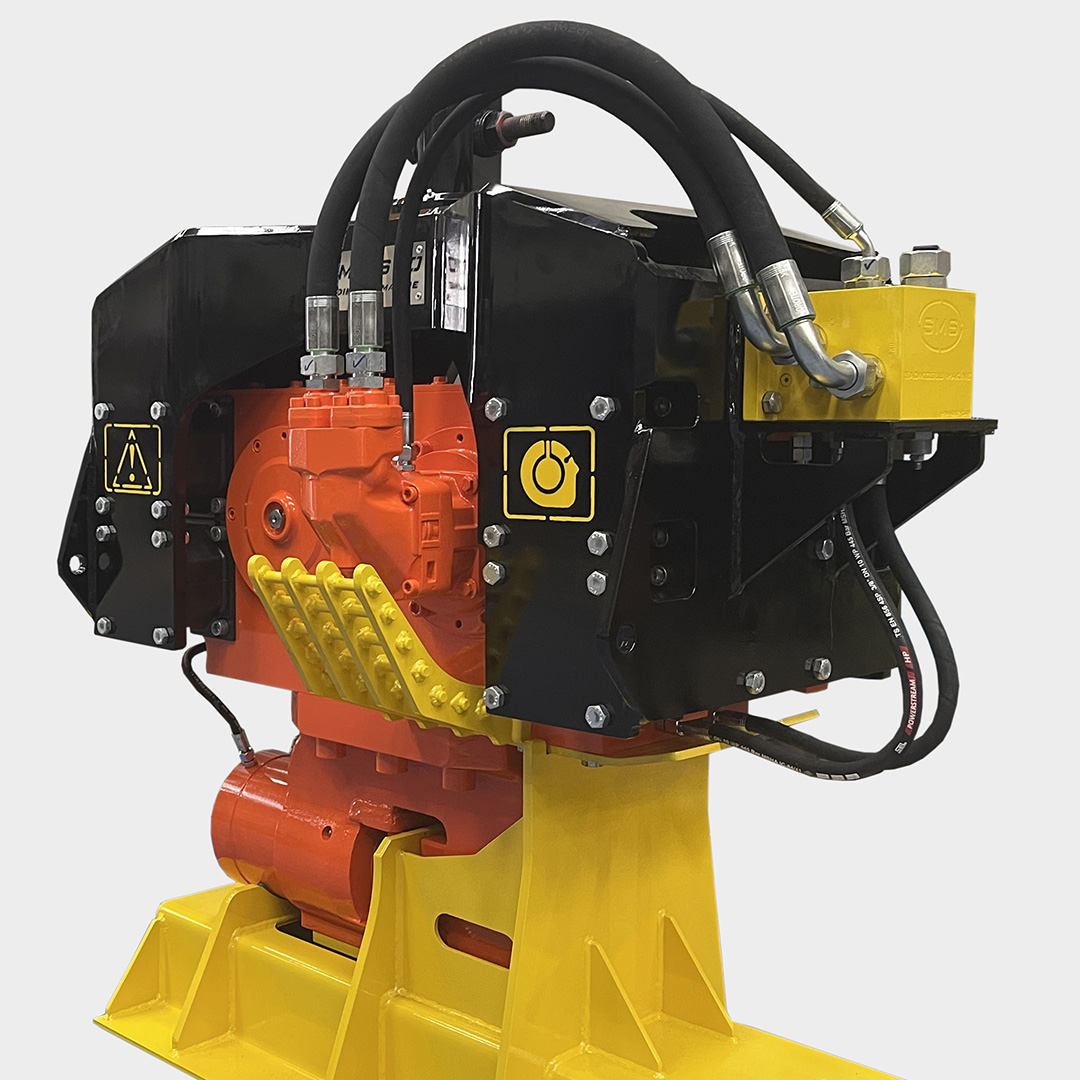

Vibratory Hammer - S70
It is a vibratory pile driver designed in ideal dimensions for 32 - 35 ton class excavators. Easy assembly to the excavator, no adjustment required, direct operator guidance and no need for extra power provide ease of use.
All spare parts for the S70 - Excavator-Mounted Vibratory Hammer we produce are in our stocks.
| Eccentric Moment (Kgm) | 6,9 |
| Centrifugal Force (kN) | 560 |
| Max. Amplitude (mm) | 14 |
| Speed (d/d) | 2700 |
| Max. Pulling Force (kN) | 150 |
| Max. Pushing Force (kN) | 80 |
| Dynamic Weight (kg) | 1000 |
| Weight (kg) | 1350 |
| Total Lenght (mm) | 1000 |
| Total Width (mm) | 1400 |
| Total Height (mm) | 750 |
| Flow (Lt/min) | 224 |
| Working Pressure (bar) | 300 |
| Power (kW) | 125 |
| Hydromotor | F12-80 |
| Oil Pump | - |
| Number of Cylinders | - |
| Rotation-Swing Angles(°) | - |
