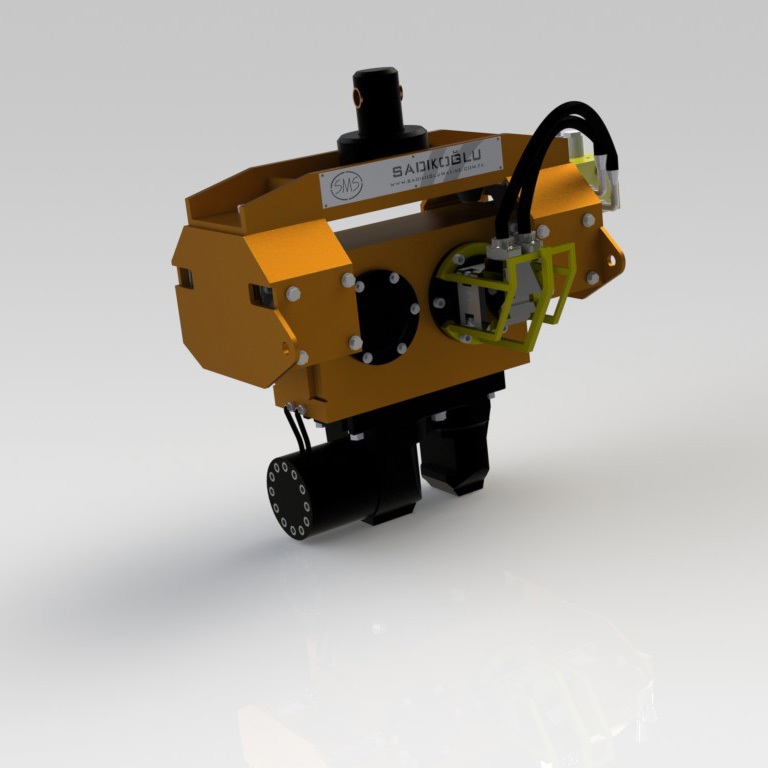

Vibratory Hammer - S20
It is a vibratory pile driver designed in ideal dimensions for 8 - 14 ton class excavators. Easy assembly to the excavator, no adjustment required, direct operator guidance and no need for extra power provide ease of use.
All parts of the S20 - Excavator-Mounted Vibratory Hammer we produce are in our stocks.
| Eccentric Moment (Kgm) | 2,2 |
| Centrifugal Force (kN) | 250 |
| Max. Amplitude (mm) | 8,7 |
| Speed (d/d) | 3150 |
| Max. Pulling Force (kN) | 60 |
| Max. Pushing Force (kN) | 40 |
| Dynamic Weight (kg) | 600 |
| Weight (kg) | 850 |
| Total Lenght (mm) | 1100 |
| Total Width (mm) | 1025 |
| Total Height (mm) | 625 |
| Flow (Lt/min) | 95 |
| Working Pressure (bar) | 300 |
| Power (kW) | 61 |
| Hydromotor | F12-30 |
| Oil Pump | - |
| Number of Cylinders | - |
| Rotation-Swing Angles(°) | - |
