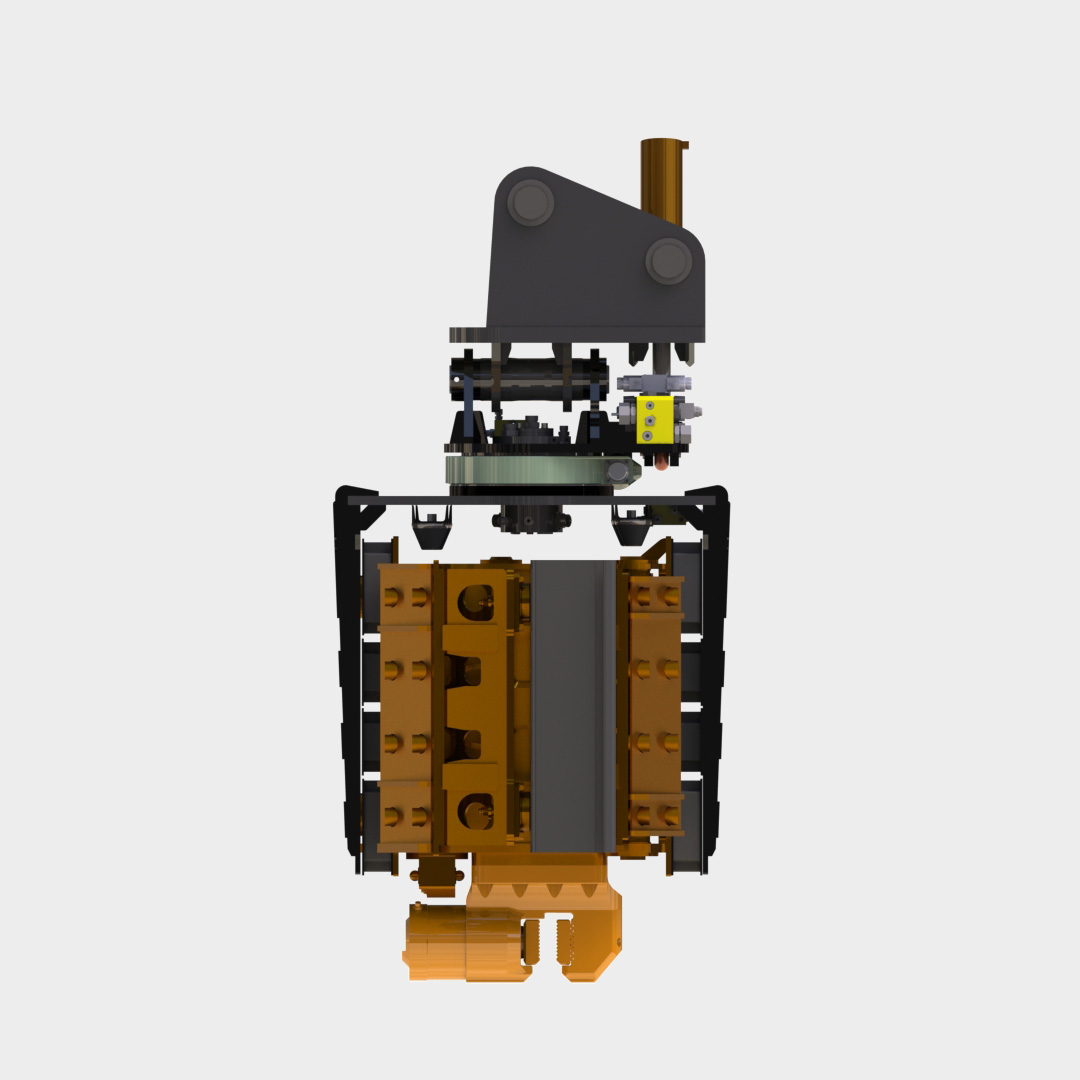

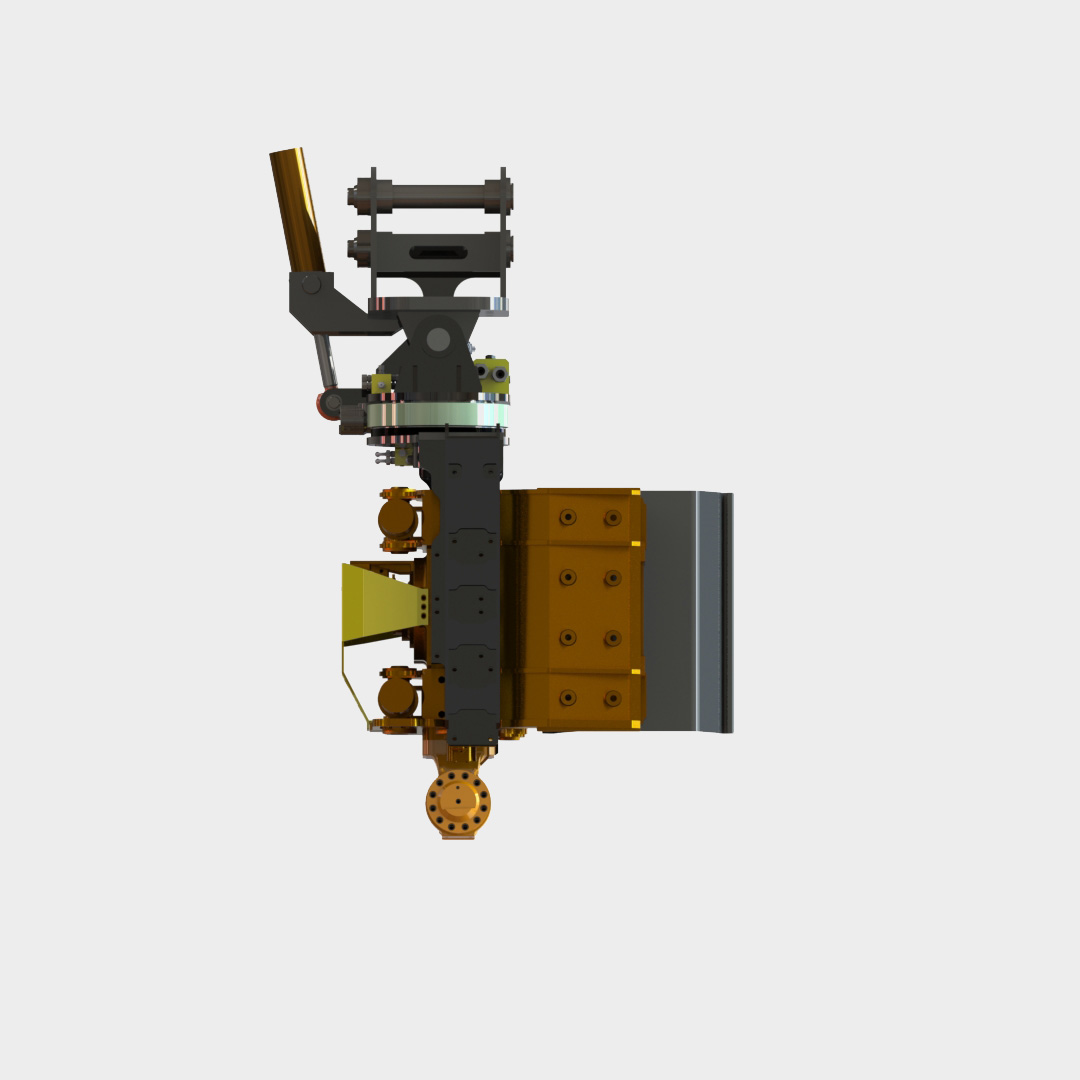

Side Grip Modular Vibratory Hammer - SGMK 30
It is an easily mounted vibratory driver with side grip designed for 14 - 20 ton excavators. SGMK series vibratory hammers are designed as modular, allows driving up to max 30° inclination or flat, materials such as pipes, sheet pile H type, etc. The PARS SGMK series side grıip vibratory hammer unit attaches to the end of the bucket arm of an excavator. The vibration unit can be rotated vertically and horizontally.
All parts of the PARS SGMK 30 - Side Grip Vibratory Hammer, which we produce, are in our stocks.
| Eccentric Moment (Kgm) | 3 |
| Centrifugal Force (kN) | 310 |
| Speed (d/d) | 3000 |
| Max. Pulling Force (kN) | 60 |
| Max. Pushing Force (kN) | 40 |
| Total Weight (kg) | 1650 |
| Total Lenght (mm) | 1280 |
| Total Width (mm) | 1100 |
| Total Height (mm) | 2300 |
| Flow (Lt/min) | 120 |
| Working Pressure (bar) | 300 |
| Power (kW) | 165 |
| Hydromotor | F12-40 |
| Oil Pump | + |
| Rotation-Swing Angles(°) | 360-30 |
| Suitable Excavator Class | 14-20 Tons |
| Transformable system | Suitable for Sheet piline and tubular piling |
| Sheet Piles | 400 mm- 600 mm 4/6/8 meter lenght Max 800 kg |
| H Beam | H180 - H500 4/6/8 meter lenght Max 800 kg |
| Tubular Pile , Tubes | 80 mm - 325 mm 4/6/8 meter lenght Max 800 kg |
