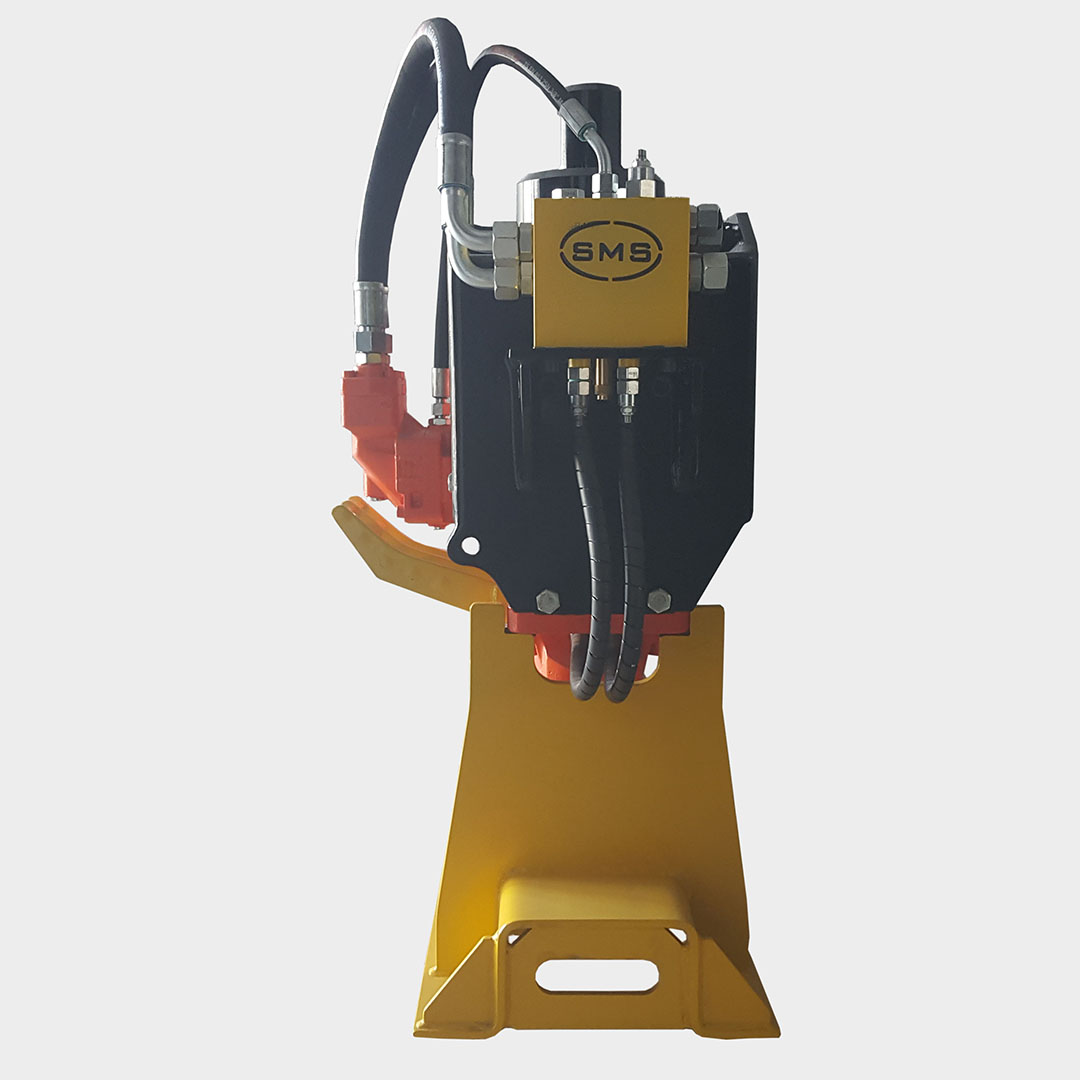

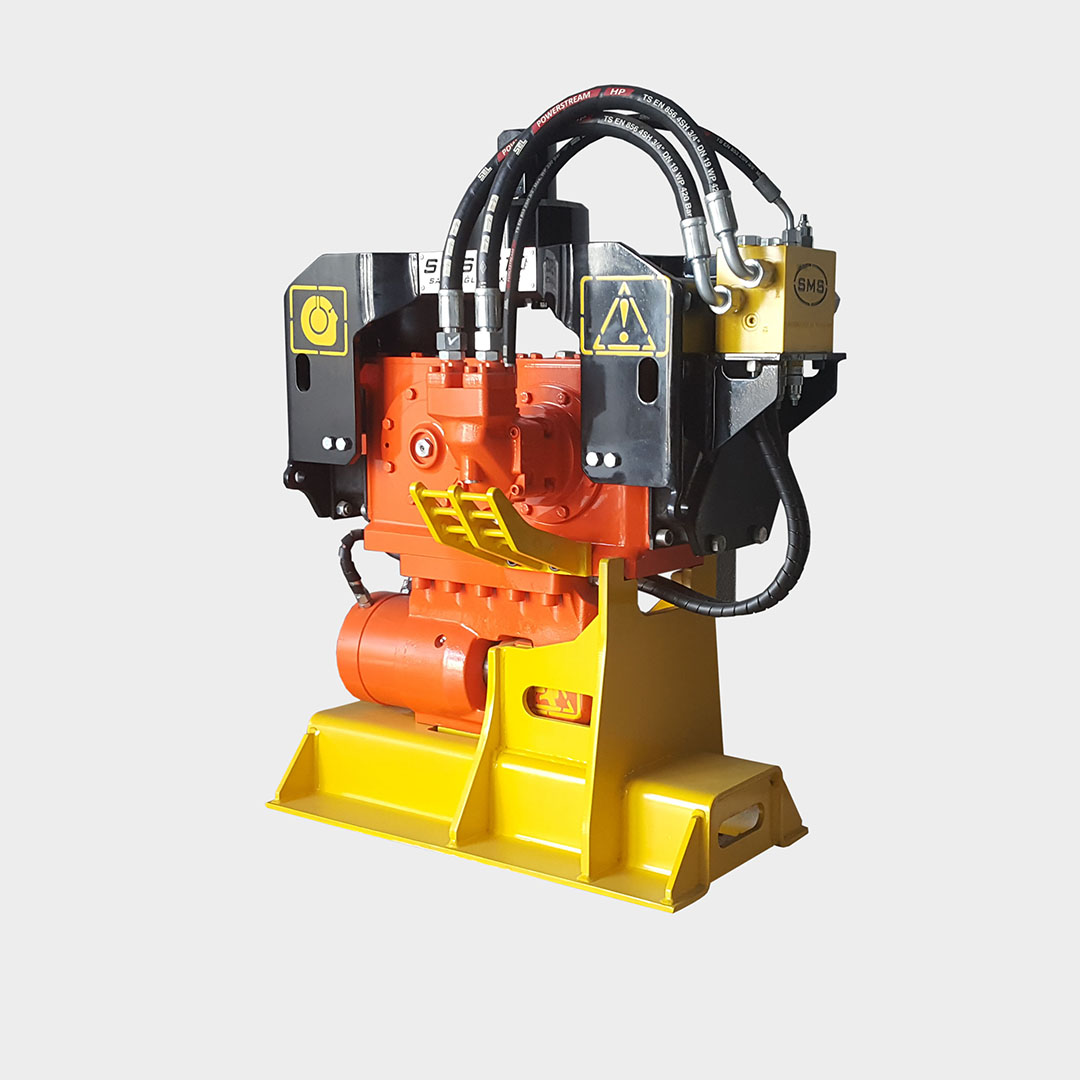

Vibratory Hammer - S10
It is a vibratory pile driver designed in ideal dimensions for excavators up to 8 tons. Easy assembly to the excavator, no adjustment required, direct operator guidance and no need for extra power provide ease of use.
An ideal solution for large jobs in tight spaces. Made for mini excavators.
| Eccentric Moment (Kgm) | 0.7 |
| Centrifugal Force (kN) | 90 |
| Speed (d/d) | 3000 |
| Max. Pulling Force (kN) | 36 |
| Max. Pushing Force (kN) | 34 |
| Dynamic Weight (kg) | 300 |
| Weight (kg) | 420 |
| Total Lenght (mm) | 885 |
| Total Width (mm) | 490 |
| Total Height (mm) | 1080 |
| Flow (Lt/min) | 100 |
| Working Pressure (bar) | 350 |
| Power (kW) | 60 |
| Oil Pump | - |
| Number of Cylinders | - |
| Rotation-Swing Angles(°) | - |
